Broaching Titanium and Superalloys: Tooling and Process Strategies

Most broaching advice is written for steel. Cut the same keyway or spline in Ti-6Al-4V or Inconel 718, and rules that seemed solid — a standard M2 broach, a comfortable cutting speed, a rinse of coolant — start failing quietly: edges chip or round over in a fraction of their expected life, surfaces smear instead of shear, and dimensions drift as the tool wears. Nothing about the machine changed. The material did.

Titanium alloys and nickel-based superalloys dominate aerospace and gas-turbine hardware — fan discs, compressor spools, turbine discs, structural fittings — and they are difficult for opposite reasons. Titanium defeats you with heat and adhesion; nickel superalloys defeat you with work hardening and hot strength. The countermeasures differ accordingly, and applying the titanium playbook to Inconel (or vice versa) is one of the most common mistakes we see in RFQ packages from new aviation suppliers.

This article covers the material science behind the difficulty, then the practical responses: tool materials and coatings, speed and rise-per-tooth logic, coolant delivery, multi-broach sequencing, surface integrity, and what the machine itself contributes. It builds on the baseline in what materials can be broached and goes deeper on the two families that punish shortcuts hardest.

Why Titanium and Superalloys Resist Broaching

Titanium: heat that will not leave, edges that will not let go

Ti-6Al-4V, the aerospace workhorse, conducts heat several times worse than steels. In broaching that hurts twice: cutting speeds are low and chips thin, and each tooth passes through a bore already warmed by the teeth before it. Heat that cannot flow into the workpiece or chip piles up at the cutting edge — and the resulting edge temperatures drive every failure titanium is known for.

The second mechanism is chemical. Titanium is highly reactive at cutting temperature: it pressure-welds to the cutting edge — the built-up edge familiar to anyone who machines the alloy — and each stuck chip that tears away takes fragments of the edge with it. The crater wear that follows on the rake face, the “crescent” wear that gives the failure its name, is the classic signature of titanium gone wrong. A titanium broach rarely dies a clean death of gradual flank wear; it dies of adhesion and edge breakdown.

The third mechanism is elastic: titanium’s modulus is roughly half that of steel, so the material springs back. Under cutting pressure the work deflects away from the tooth, then rebounds behind it and clamps onto the flank and broach sides. That raises friction and heat further, and can squeeze the tool in the finished portion of a form — which is why generous side and flank relief is mandatory on titanium tooling, and why a broach dimensioned exactly like its steel counterpart can bind in a titanium bore.

Nickel superalloys: harder while you cut them, hard when hot

Inconel 718 — the default alloy for hot-section rotating hardware — attacks the edge by a different pair of mechanisms. The first is rapid work hardening: nickel superalloys strain-harden aggressively as they deform, so the surface layer a tooth has rubbed or partially cut becomes measurably harder than the material beneath. A tooth taking too small a bite cannot penetrate that skin; it rubs through instead, hardening the surface further and leaving a glazed layer later teeth struggle to shear at all.

The second is hot strength. Nickel superalloys are engineered — through their gamma-prime and gamma-double-prime strengthening phases — to keep their strength at temperatures where tool steels have surrendered. Inconel 718 is strengthened by a fine dispersion of hard gamma-double-prime precipitates embedded in a matrix that stays tough at cutting temperature. The tool faces a workpiece that is abrasive, tough, and unsoftened throughout the entire cut; nothing lets up.

Side by side: titanium is moderate in strength but vicious in chemistry and heat; nickel superalloys are vicious in strength and hardening, with abrasive metallurgy on top. Every strategy below answers one of those four mechanisms.

Titanium Broaching Strategy: Sharp, Slow, and Flooded

Keep the edge sharp — dull tools feed the chemistry

Because titanium’s failures are adhesive and thermal, the single most important tooling decision is edge sharpness. A keen, positive-rake geometry shears titanium cleanly and keeps temperature down; a dull or heavily honed edge plows and rubs, multiplying exactly the pressure and heat that drive pressure welding. Titanium broaches therefore carry more generous rake angles than steel broaches, with edges prepared genuinely sharp — the edge preparation that extends life on hardened steel work can be actively harmful here. Sharpness is also a consumable: as soon as the edge degrades, the adhesion cycle accelerates. Titanium work therefore demands tighter discipline in monitoring broach tool life — pull the tool at the first sign of edge deterioration, not at visible failure.

Low cutting speed, delivered coolant

Edge heat scales with cutting speed, and titanium cannot export that heat through the chip — so the only lever is to generate less of it: cut substantially slower than steel practice. The compensation is that broaching was never speed-dependent; a stroke is still measured in seconds, so a fraction-of-steel speed costs little cycle time while buying a disproportionate gain in edge life. Coolant, meanwhile, is a load-bearing part of the process: high volume, ideally under pressure, directed into the cutting zone and along the flanks where spring-back friction builds, so it reaches the teeth doing the work rather than bouncing off the bore mouth.

Coatings and the countermeasures for crater wear

Modern PVD coatings in the TiAlN family — including aluminum-rich variants developed for aerospace alloys — give the edge the two protections titanium attacks hardest: a hot-hardness barrier that insulates the substrate, and a chemically inert surface that resists welding-on. Coating raises the ceiling on how long a sharp edge survives; it does not replace sharpness, and a coating applied over an insufficiently sharp edge locks the problem in. When smearing, titanium residue on flanks, or crescent rake-face wear appear, the response checklist is short and physical: reduce speed, raise coolant pressure and aim, regrind to restore a truly sharp positive edge, verify coating integrity, and confirm the rise-per-tooth is large enough that each tooth shears rather than rubs.

Nickel Superalloy Strategy: Cut Beneath the Hardened Layer

Why rise-per-tooth cannot be too small

The central rule of superalloy broaching is counterintuitive for engineers trained on steel: when the material work-hardens, cutting “gently” with fine teeth is self-defeating. A tooth taking too small a bite rides on the hardened skin left by the previous tooth, rubbing instead of shearing. Each tooth must bite deep enough to penetrate beneath the previously hardened layer into sound material. That is why a superalloy broach often carries fewer, more heavily loaded teeth than a steel broach for the same form — and why low speed combined with substantial tooth load is the signature of nickel-alloy broaching: slower than steel, but never feather-light.

Tool materials: from PM high-speed steel to carbide teeth

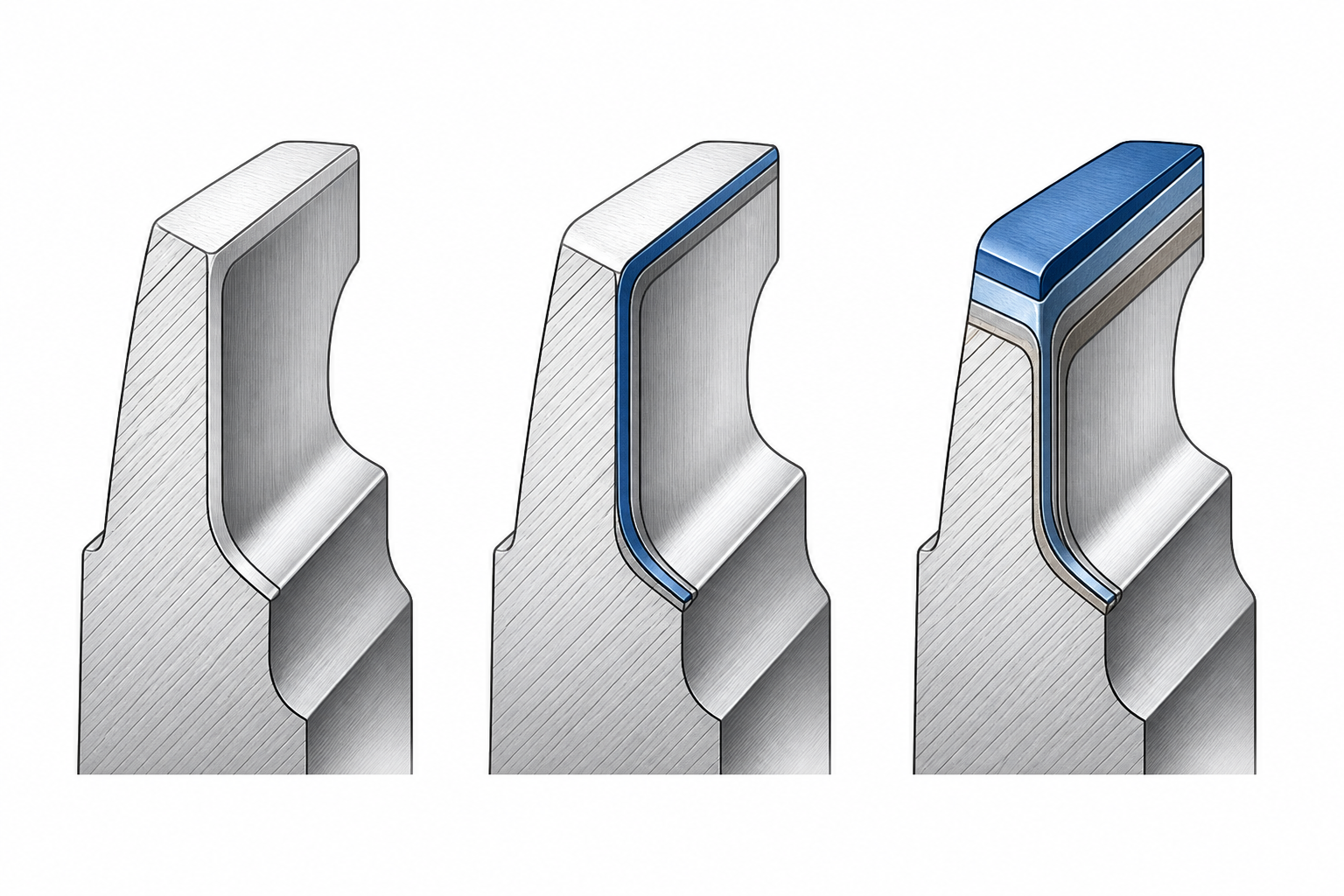

Conventional high-speed steel gives too little edge life here to be economical. The realistic ladder starts with powder-metallurgy HSS — PM-produced grades in the M-4 class, whose fine, uniform carbide structure resists the abrasive phases — and climbs to cemented carbide teeth or inserted segments for heavy-duty roughing, where material removal is greatest. PM HSS offers toughness and regrindability at workable cost; carbide offers hot hardness against a material that stays strong exactly where the tool is weakest. Production superalloy broaches frequently mix the two, and virtually all of it is TiAlN-family PVD coated, for the same reasons as titanium.

Split the job: roughing, semi-finishing, finishing broaches

A single broach that roughs and finishes a nickel-alloy form asks one tool to survive the heaviest loads and deliver the tightest geometry simultaneously — and in superalloys that compromise fails. Standard practice is a broaching set: the roughing broach carries the heavy rise-per-tooth that gets under the hardened layer with maximum edge economy; the semi-finishing broach brings the form close to size with moderate loading and fresher geometry; the finishing broach carries light, precise teeth whose only job is final size, form, and surface — protected from the work that would wear it early. Segmenting the process also segments the wear: the expensive finishing tool stays sharp because it never sees roughing duty, and the rougher can run hard and be reconditioned often without touching final geometry. The related question of machining hardened versus annealed stock is covered in hard broaching vs. soft broaching.

The Peak Application: Fir-Tree Slots in Turbine Discs

If one application defines the state of the art in superalloy broaching, it is the fir-tree slot — the tapered, multi-lobed dovetail that anchors turbine blades in a jet-engine disc. The workpiece is a forged Inconel-family disc; the geometry is a deep, angled, multi-radius form held to tight tolerance and repeated identically dozens of times around the rim; the consequence of a defect is catastrophic. Every difficulty above — work hardening, hot strength, abrasive phases — is present at maximum intensity.

Production fir-tree broaching answers with everything in this article at scale: multi-broach sequences with roughing, semi-finishing, and finishing distributed across a chain of broaches pulled in succession; carbide and PM-HSS tooling with aerospace PVD coatings; low stroke speeds with high-pressure coolant flushed through the cut; machines of exceptional rigidity and stroke length. It is broaching at its most engineered, described in detail in turbine disc fir-tree slot broaching. Wire EDM has earned a real role here — prototypes, repair, low-rate production — because erosion shrugs off Inconel’s hardness; but at engine-program quantities the volume economics hold firmly for broaching, as laid out in broaching vs. wire EDM. What that comparison often misses is surface integrity, which in this industry is not a detail.

How the Process Changes Versus Steel: A Qualitative Comparison

The table below summarizes how the process shifts when the workpiece moves from alloy steel to titanium to nickel superalloys. Entries are deliberately qualitative: exact speeds, loads, and tool specifications belong to the tool designer and depend on the form, machine, and material condition — no responsible manufacturer publishes universal numbers for difficult alloys.

Read across the rows and the pattern holds: nothing about the principle of broaching changes — one tool, progressive teeth, one stroke — but every parameter moves toward lower heat, higher edge protection, and heavier, cleaner bites. Difficult alloys do not break the process; they charge full price for it.

Surface Integrity: White Layer and the Fatigue Question

In aerospace work, surface quality is not judged by roughness alone. Fatigue-critical components are judged by surface integrity — the condition of the top fraction of a millimeter, where cracks initiate. Two conditions dominate: the white layer, a thin, hard, brittle untempered structure formed when the surface is heated above transformation and quenched by coolant in microseconds; and work-hardened or smeared layers, where rubbing rather than shearing leaves a deformed, high-residual-stress skin.

Here process choice becomes a metallurgical argument, not just an economic one. Wire EDM removes metal by melting and vaporizing, so every cut surface carries a thin recast layer and heat-affected zone that fatigue-critical parts may need to remove afterward. A properly executed broaching cut shears metal below transformation temperature — mechanical removal, no recast layer — and with sharp tools and adequate tooth loading produces surfaces free of white layer. For rotating hardware where a surface defect can ground an engine, that difference is a major reason broaching holds its position on fir-tree slots. The caveat cuts both ways: a badly run broach — dull edges, insufficient rise-per-tooth, starved coolant — can itself smear, work-harden, and thermally damage a superalloy surface. Surface integrity is a property of the process done right, and the inspection side (etch checks, residual-stress sampling, metallographic verification) belongs in the process plan from day one.

What the Machine Has to Contribute

Difficult-material broaching is a systems problem, and the machine is half the system. First, rigidity and force reserve: superalloy broaching with heavy rise-per-tooth raises cutting force substantially, and machine, fixture, and part must resist it without deflection — which means tonnage margin above the calculated load, not tonnage equal to it. A machine sized with no reserve will chatter, deflect, and stamp its own geometry errors into every form.

Second, speed control through the stroke. Low cutting speed only helps if it is a controlled, consistent low speed — not a surge at the start of the cut or a drift as load builds. Servo-driven machines hold a genuine advantage here: a programmed, uniform velocity under changing load translates directly into uniform chip thickness, uniform edge loading, and repeatable surface condition tooth after tooth; see servo vs. hydraulic broaching machines for the practical comparison. Third, coolant as engineered infrastructure: high-pressure delivery, filtration that keeps swarf out of the pump and the cut, and volume capacity for continuous production stroking. A steel-duty machine upgraded with a difficult-alloy broach usually fails at the plumbing, not the tool.

Tool Economics: Shorter Lives Make Reconditioning Strategic

Everything above converges on one commercial fact: broaches in difficult alloys wear faster than broaches in steel. Titanium’s adhesive wear and nickel’s hardening-plus-abrasion shorten edge life, and the multi-broach sets superalloy work demands multiply the tools in service. Tooling cost per part therefore depends less on purchase price than on how many parts each broach delivers across its life — which depends almost entirely on reconditioning: cut to a defined wear limit (well short of visible failure), regrind, recoat, return to service. Each well-executed cycle restores most original performance at a fraction of replacement cost, as covered in broach reconditioning. The operational rule that matters: in difficult alloys the wear limit must be set earlier than in steel, because edge breakdown, cratering, and smearing degrade the workpiece surface long before they stop the machine. Running a titanium broach to a steel wear limit trades cheap regrind stock for scrapped aviation parts.

Frequently Asked Questions

Can titanium be broached?

Yes. Titanium alloys, including Ti-6Al-4V, are broached routinely for aerospace keys, splines, and forms — provided the process is engineered for titanium: sharp positive-rake edges, TiAlN-family PVD coatings, speeds well below steel practice, high-pressure coolant delivered into the cutting zone, and generous clearance for the material’s spring-back. What titanium does not forgive is a steel tool run with steel parameters; that combination fails quickly through adhesion and crater wear.

Can Inconel and other nickel superalloys be broached?

Yes — Inconel 718 and related alloys are broached at production scale, most prominently for the fir-tree slots that hold blades in turbine discs. The enabling strategies are heavier rise-per-tooth so each tooth cuts beneath the work-hardened layer, PM-HSS or carbide tooling with aerospace PVD coatings, low cutting speeds, high-pressure coolant, and multi-broach roughing/semi-finishing/finishing sequences. It is demanding, fully engineered broaching — and standard practice across the turbine industry.

What coatings are used for broaching titanium and superalloys?

PVD coatings in the TiAlN family are the industry standard for both groups, with aluminum-rich variants developed specifically for aerospace alloys. They act as a hot-hardness barrier protecting the edge from heat and as a chemically inert surface resisting titanium’s pressure welding. The coating supplements — never replaces — correct edge preparation: grind the edge sharp first, coat second.

Why is broaching speed kept so low for these materials?

Because of where the heat goes. Titanium conducts heat poorly, so heat generated at the edge stays at the edge; nickel superalloys keep their strength at cutting temperature, so the edge gets no relief as things heat up. Higher speed raises edge temperature directly, and edge temperature drives both families’ failure modes — adhesion and cratering in titanium, rapid abrasive wear in superalloys. Since a stroke completes in seconds regardless, low speed costs little cycle time and buys tool life, dimensional stability, and surface integrity. It is the cheapest insurance in the process.

Broaching titanium and superalloys, in one sentence: the alloys set the rules — titanium punishes heat and dull edges, nickel punishes light cuts and soft tooling — and a process engineered around those rules, from coating to coolant to machine, produces aerospace-grade forms at speeds and costs no alternative can match.

We build broaching machines and engineer the tooling programs that run them, including the multi-broach sequences and difficult-alloy strategies described here. If your parts are titanium or nickel-superalloy forms — splines, fir-tree slots, structural profiles — at production volumes, send us the drawings, material specifications, and annual quantities, and we will tell you plainly what the tooling, machine configuration, and process plan should look like.
